Curate Adapters (Vaults V2)

Adapters are the core of a Morpho Vault V2's extensibility. They are smart contracts that act as bridges, allowing your vault to connect to and allocate assets in any version of the Morpho protocol. As a Curator, enabling and configuring adapters is how you define your vault's allocation universe.

This guide will walk you through the process of deploying, listing, and configuring adapters, with a focus on the MorphoMarketV1AdapterV2 that connects your Morpho Vault V2 directly to Morpho Variable Rate Markets. It also covers configuring adapter caps after deployment.

What is an Adapter? An adapter contains the specific logic needed to allocate and deallocate assets to a target protocol. It must be enabled via addAdapter (a timelocked action) before the vault can interact with it. Adapters also define the "ids" used for risk management caps.

Setting Up the `MorphoMarketV1AdapterV2`

The MorphoMarketV1AdapterV2 allows your Morpho Vault V2 to allocate directly to variable rate markets. It is deployed via the MorphoMarketV1AdapterV2Factory, which takes the parent vault address and automatically connects to the Morpho Blue contract.

Method 1: via the Curator App V2 (Recommended)

curator.morpho.org

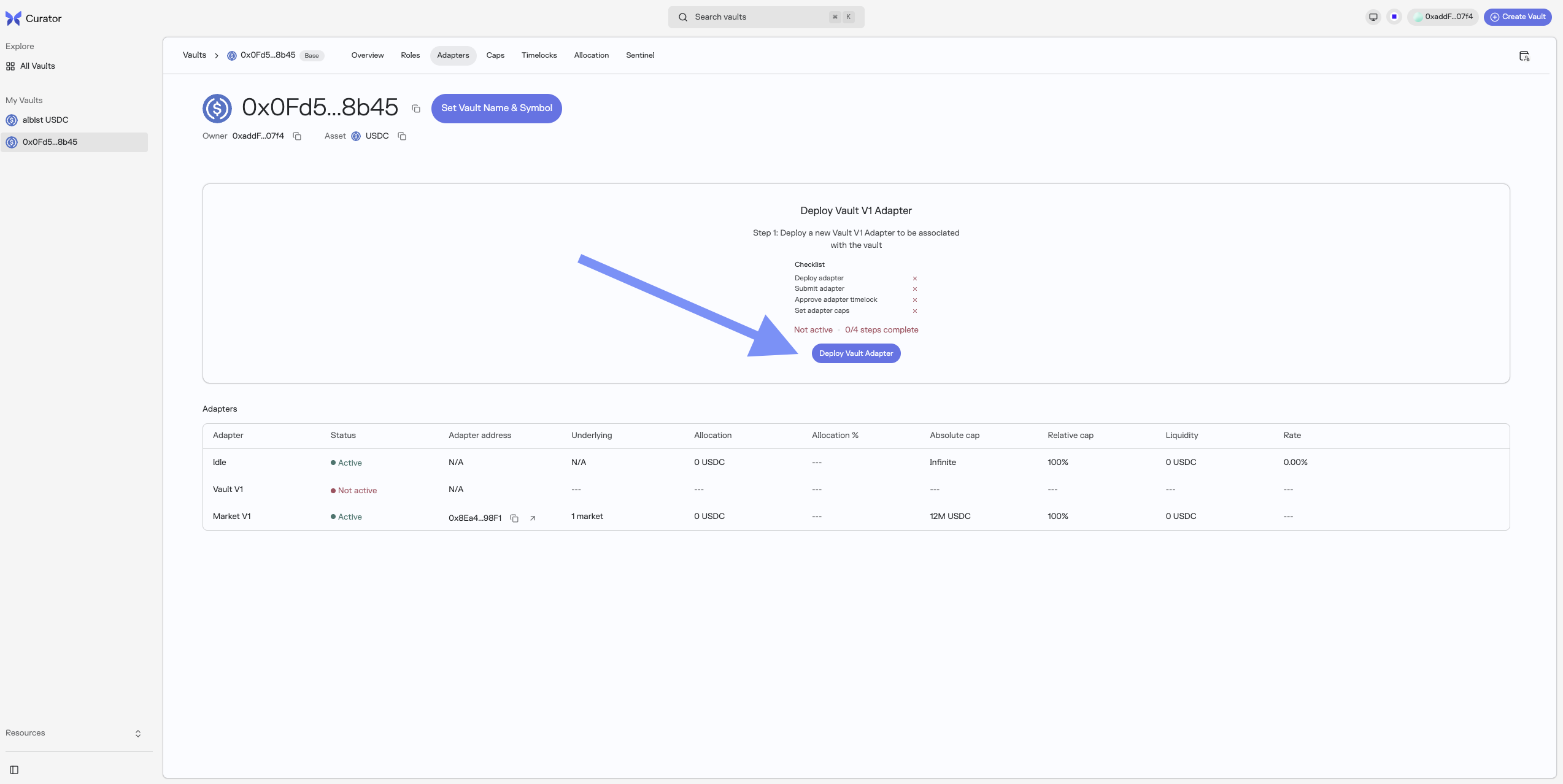

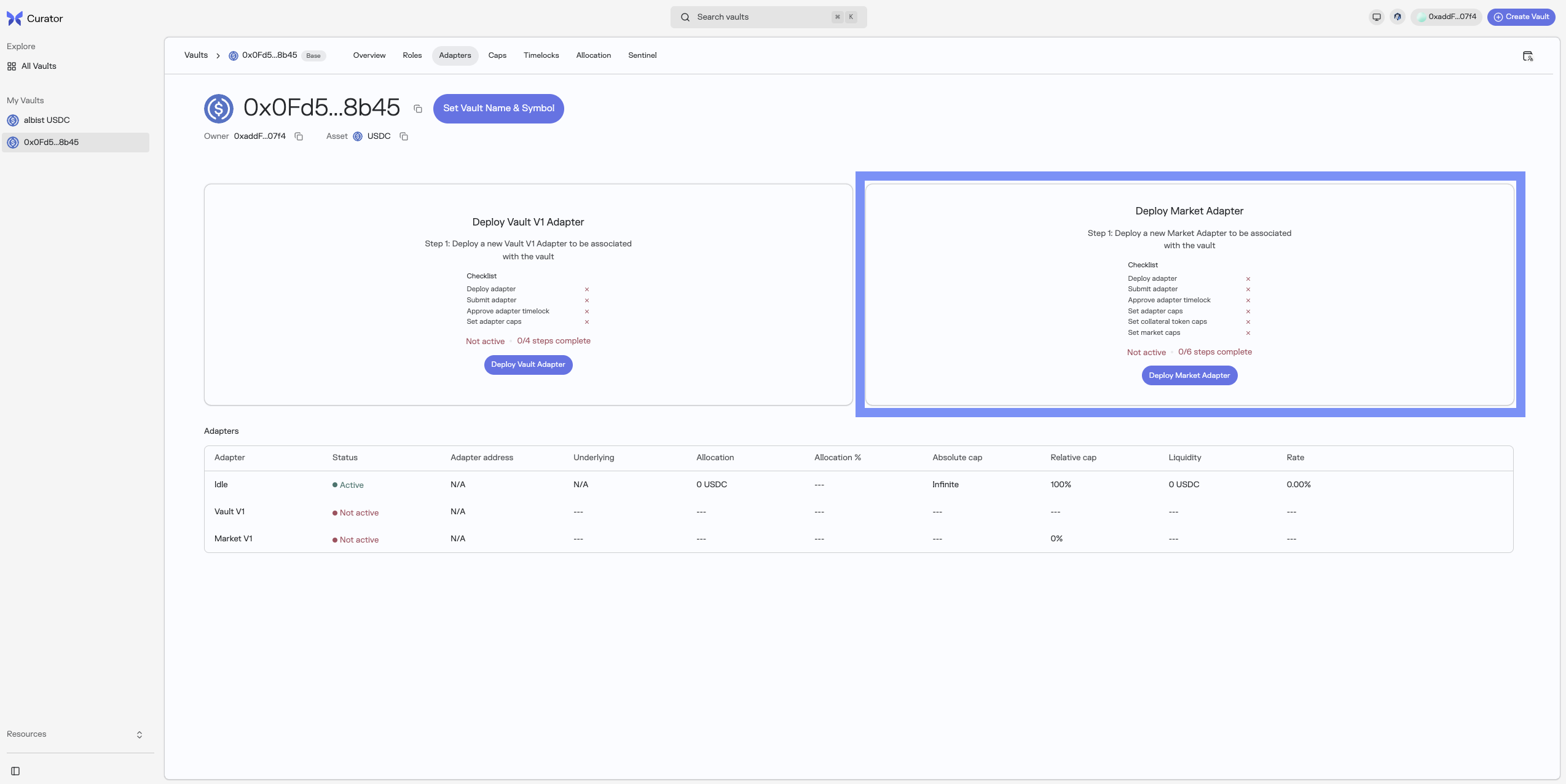

On your Morpho Vault V2 page, navigate to the Adapters tab. If no adapter is configured yet, the interface will guide you through the setup flow.

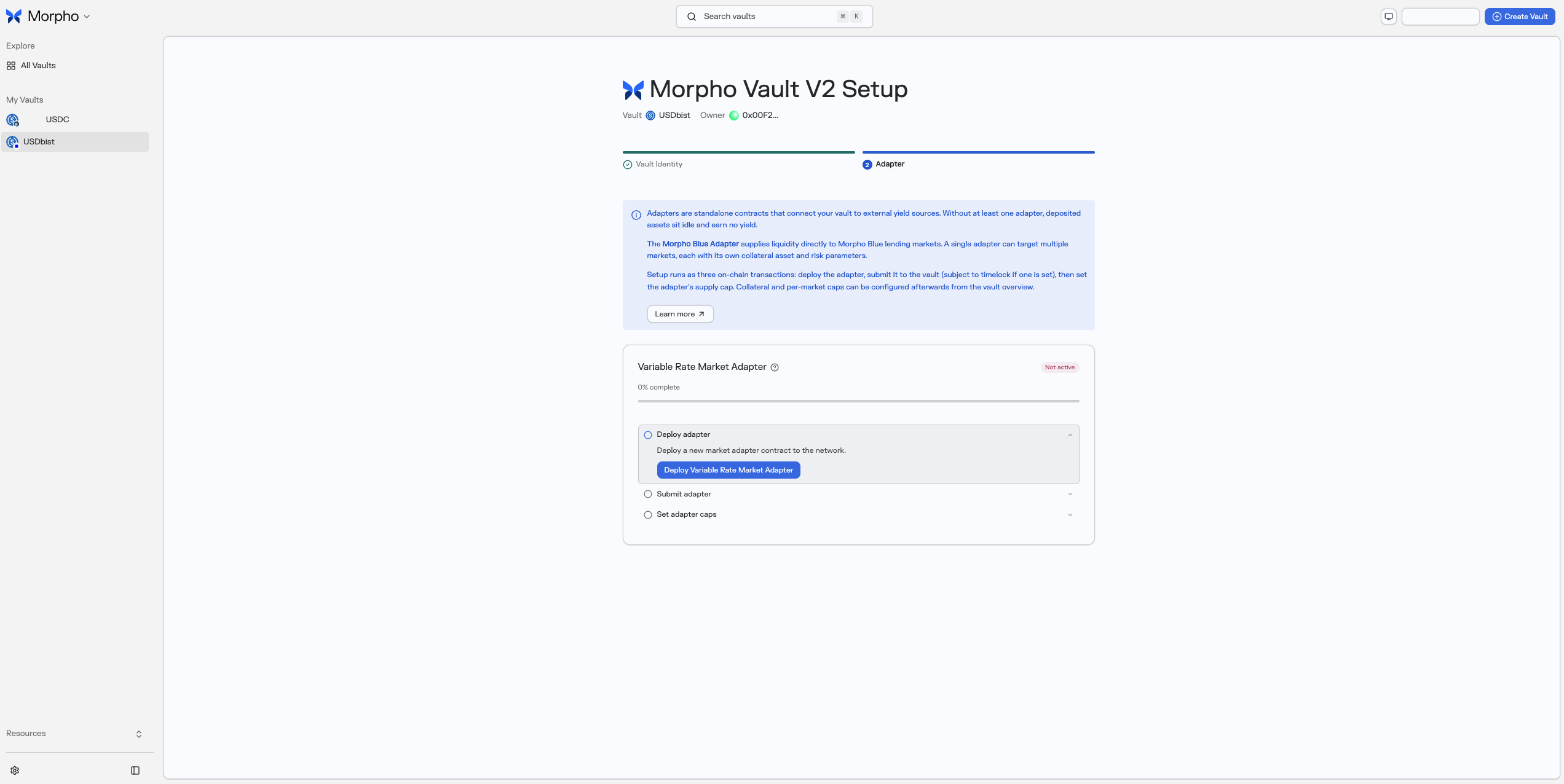

The Curator App V2 prompting to set up a first adapter

For production use, pause after deploying the adapter and complete adapter hardening before submitting or accepting its addition to the vault.

The flow will implement the steps below:

Deploy adapter

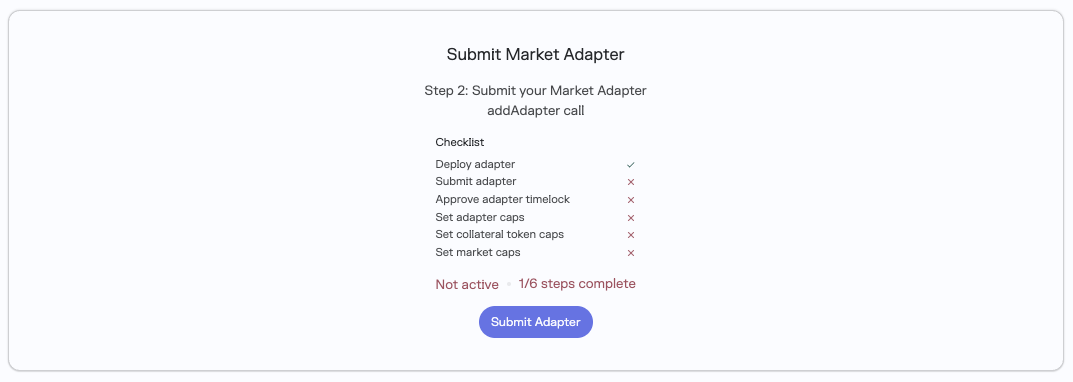

Submit adapter
Approve adapter timelock (if any)
Set adapter caps

The adapter's burnShares timelock and the vault's addAdapter timelock are separate settings. If you cannot complete the adapter-level hardening in the UI, use the Etherscan procedure below before enabling it.

Before allocating, configure the required collateral-token and market caps in (De)List Markets.

Method 2: via Etherscan

1. Deploy the Adapter

Deploy MorphoMarketV1AdapterV2 via its factory by calling:

factory.createMorphoMarketV1AdapterV2(vaultV2Address)

where factory is the deployed MorphoMarketV1AdapterV2Factory contract.

2. Configure and Verify Adapter Timelocks

Prerequisite: the encoding commands below require Foundry, including cast. Follow the official Foundry installation guide and confirm that cast --version works before proceeding.

Keep the adapter disabled and unfunded until this step is complete. Perform these calls on the adapter contract, not the vault. Check that parentVault() is your intended vault on the selected chain.

Choose a reviewed production timelock for burnShares(bytes32), in seconds. Obtain its selector with cast sig "burnShares(bytes32)".
Encode the adapter's increaseTimelock(bytes4,uint256) call. For the three-day example, this command only encodes calldata; it sends no transaction:

cast calldata "increaseTimelock(bytes4,uint256)" \
  "$(cast sig 'burnShares(bytes32)')" 259200

As Curator, call the adapter's submit(bytes) with that calldata. Read executableAt(bytes) using the identical calldata. Once the nonzero execution timestamp has been reached, execute increaseTimelock(burnSharesSelector, timelockSeconds) on the adapter with the same arguments, and confirm the transaction. The increaseTimelock call is itself subject to the adapter's current timelock for that function; submission alone does not change the setting.
Review the adapter's pending actions from its Submit, Accept and Revoke events, starting at deployment. Check each candidate's exact calldata with the adapter's executableAt(bytes). Revoke pending burns and any queued timelock reductions that could undermine the chosen timelock using the adapter's revoke(bytes) as Curator or Sentinel. Do not inspect only the vault's pending actions.
Read back timelock(burnSharesSelector) on the adapter and confirm it matches the reviewed timelock. Confirm that the unsafe pending actions are no longer executable (executableAt(data) == 0). Only then continue to adapter enablement. Recheck these conditions before the first allocation or user deposit.

Increasing a timelock does not postpone proposals already submitted: they retain their original execution timestamp. A queued decreaseTimelock can also undo a newly increased timelock if it was submitted under the old shorter timelock. Check the pending actions as well as the final timelock value. These checks configure a safety window; do not submit or execute burnShares as a setup test.

revoke(data) cancels an individual pending proposal; executing abdicate(burnSharesSelector) on the adapter permanently blocks both pending and future burnShares calls (without clearing their stored execution timestamps), but irreversibly removes that emergency-burn capability and is not part of this setup procedure.

The emergency guide identifies burning as an "adapter timelock" operation, callable by the "Curator via adapter submit", and warns that "Burnt shares are lost forever."

3. Enable the Adapter

As Curator, encode: abi.encodeCall(IVaultV2.addAdapter, (adapterAddress)).
Call submit(bytes) with the encoded data.
After timelock, call addAdapter(adapterAddress).

4. Set Risk Caps

The adapter's ID is computed as:

bytes memory idData = abi.encode("this", adapterAddress);
bytes32 id = keccak256(idData);

Submit and execute cap increases:

increaseAbsoluteCap(idData, capAmount)
increaseRelativeCap(idData, relativeCapWad) (where 1e18 = 100%)

5. Set as Liquidity Adapter (if needed)

As Allocator, call with the default MarketParams encoded as data. The encoded market params identify which Morpho Variable Rate Market will receive new user deposits and serve withdrawals:

bytes memory liquidityData = abi.encode(marketParams);
vault.setLiquidityAdapterAndData(adapterAddress, liquidityData);

Configuring Adapter Caps

Method 1: via the Curator App V2 (Recommended)

curator.morpho.org

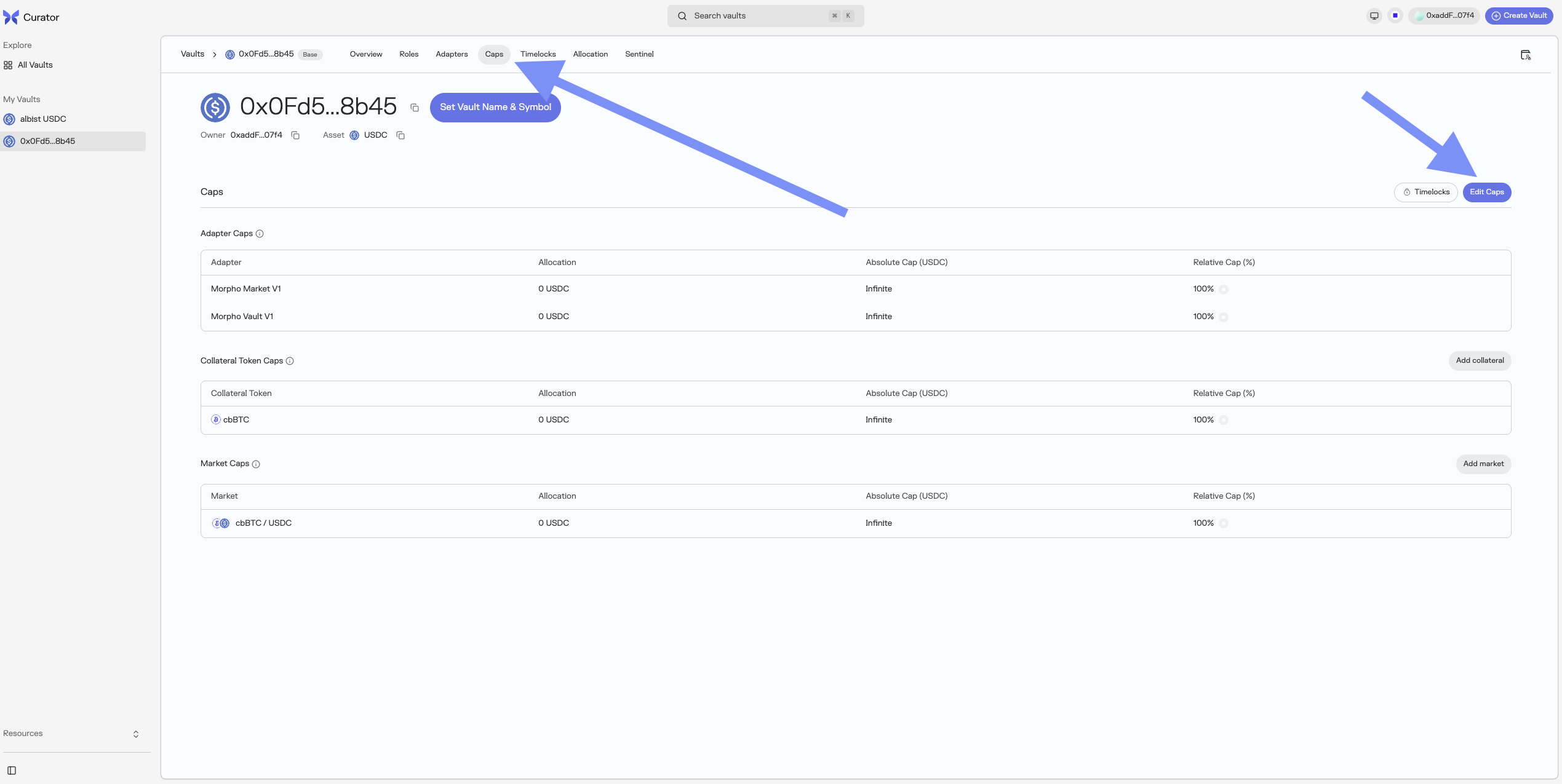

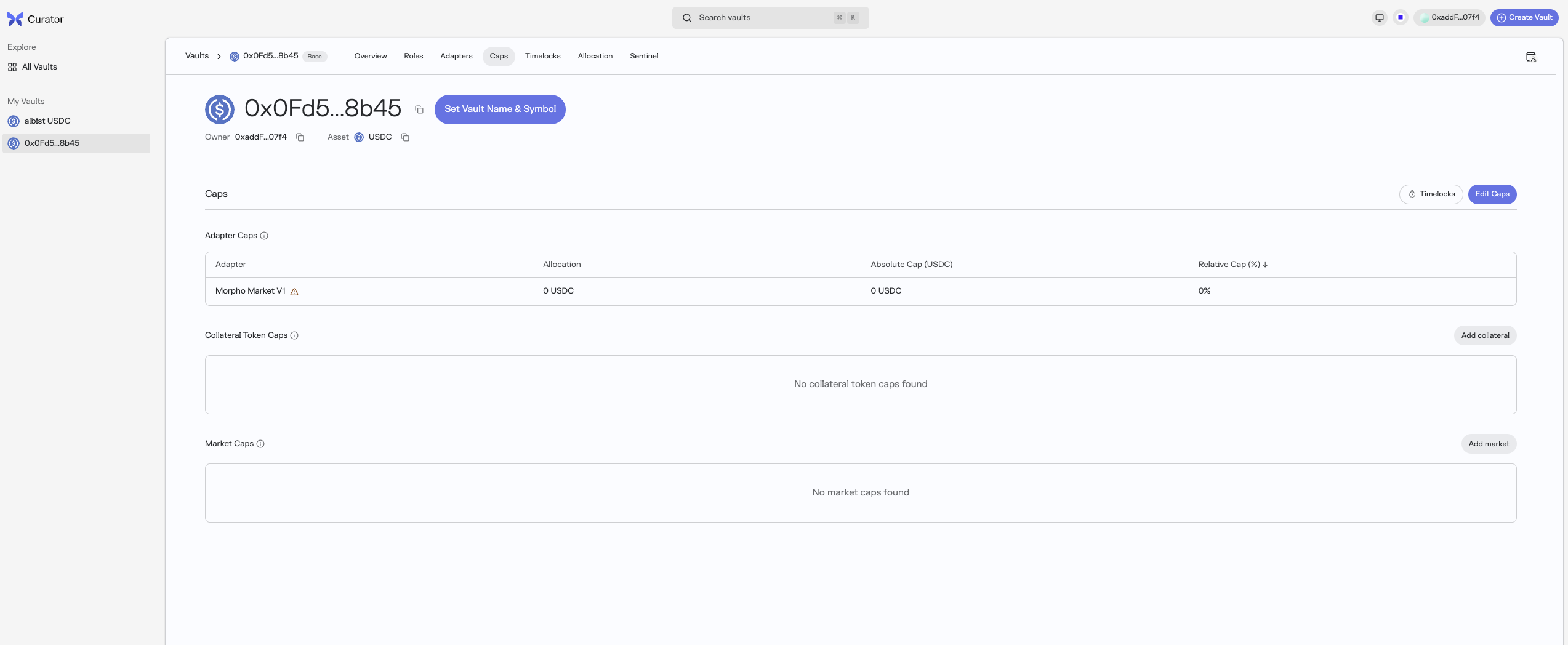

Directly on the Caps page of your Morpho Vault V2 by clicking on the "Edit Caps" button.

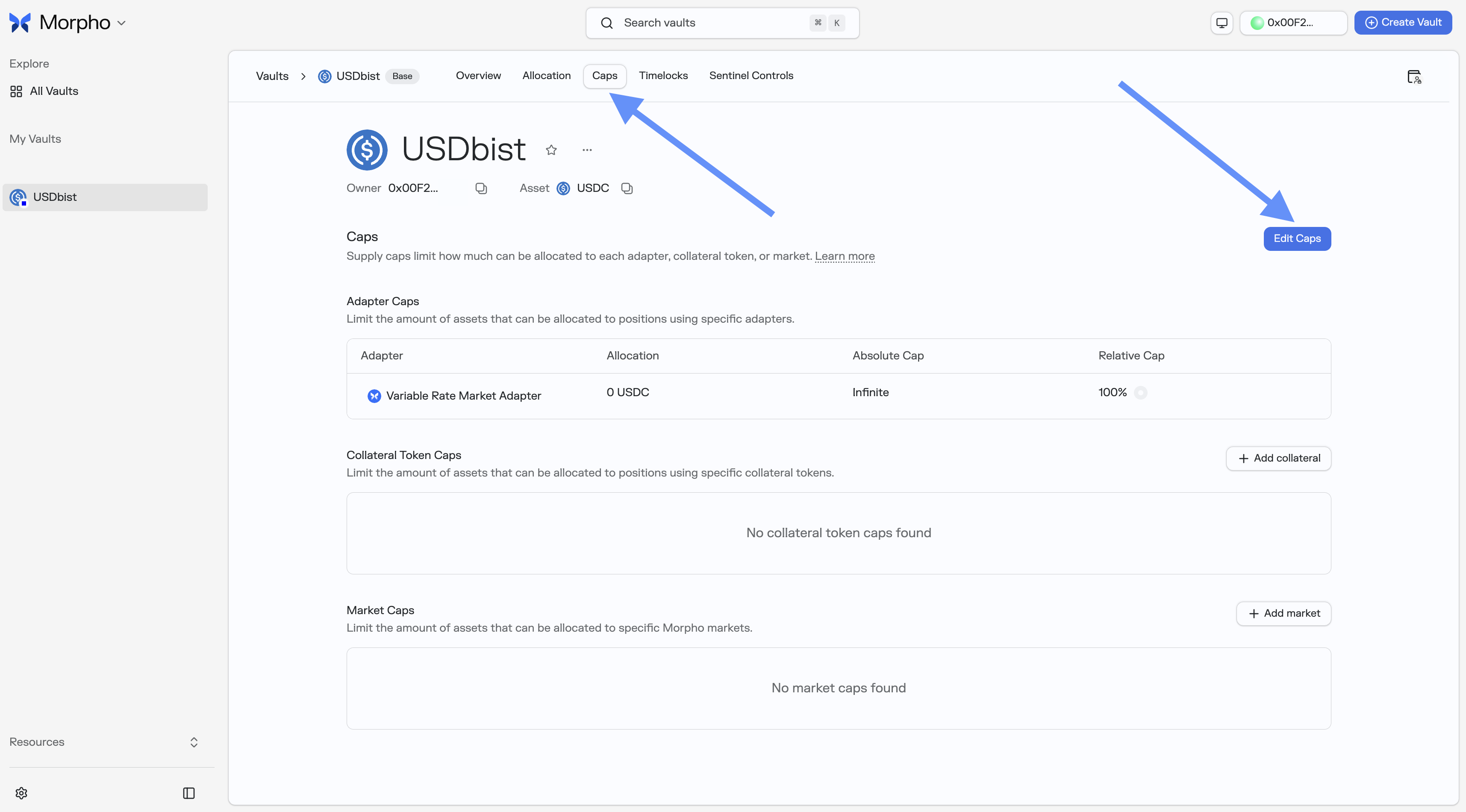

Caps page with Edit Caps button for managing adapter caps

Cap increases with a non-zero timelock are submitted as pending actions. Once the timelock has elapsed, execute them from the vault's Timelocks page. If the timelock is zero, the Curator App submits and executes the cap changes in the same transaction. Cap decreases take effect immediately.

Method 2: via Script

Each adapter uses the following cap IDs:

MorphoMarketV1AdapterV2:
- Adapter: keccak256(abi.encode("this", adapterAddress))
- Collateral: keccak256(abi.encode("collateralToken", marketParams.collateralToken))
- Market: keccak256(abi.encode("this/marketParams", adapterAddress, marketParams))
MorphoVaultV1Adapter: keccak256(abi.encode("this", adapterAddress))

Collateral caps are shared by markets with the same collateral token within the vault, including across adapters that use this ID.

Cap setters take the unhashed idData; getters such as absoluteCap and relativeCap take keccak256(idData). For example, to lower an adapter-wide cap:

bytes memory idData = abi.encode("this", adapterAddress);
vault.decreaseAbsoluteCap(idData, newLowerCap);
vault.decreaseRelativeCap(idData, newLowerRelativeCap);

The caller must be the Curator or a Sentinel. Neither call is timelocked, and each new value must be less than or equal to the corresponding current cap. Absolute caps use raw units of the vault's underlying asset; relative caps use WAD units (1e18 = 100%). Lowering caps limits new allocations; it does not withdraw existing assets.

Delisting an Adapter

Critical: Set Caps to Zero Before Removing an Adapter

Before delisting an adapter, you must set both the absolute cap and relative cap to 0 for every ID exclusive to that adapter. This prevents any allocator from frontrunning the timelocked removeAdapter call by allocating assets into the adapter during the timelock window. Without this step, an allocator could push assets into the adapter right before removal, and since removeAdapter does not revert if the adapter still holds assets, those assets would be permanently lost to the vault's depositors.

Before delisting, follow the full Adapter Soft Deprecation procedure, which covers both deallocating existing assets and zeroing caps to prevent frontrunning.

Setting Force Deallocate Penalty

When the vault's normal withdrawal liquidity - its idle assets and configured liquidity adapter - is insufficient, anyone can call forceDeallocate to move available assets from a selected adapter into the vault's idle balance. Set a force-deallocation penalty for that adapter to discourage unnecessary or disruptive use of this permissionless function:

// As Curator, submit proposal (max 2% = 0.02e18)
vault.submit(abi.encodeCall(IVaultV2.setForceDeallocatePenalty, (adapterAddress, 0.01e18)));

// After timelock
vault.setForceDeallocatePenalty(adapterAddress, 0.01e18); // 1% penalty

The penalty is configured per adapter, is scaled by 1e18, and cannot exceed 2% (0.02e18). For example, 0.01e18 applies a 1% penalty to the amount force-deallocated.

A zero penalty burns no shares, but it also allows permissionless force-deallocation to move available assets from the adapter into the vault's idle balance without an economic deterrent.
